Made in the U.S.A.

Interface Device

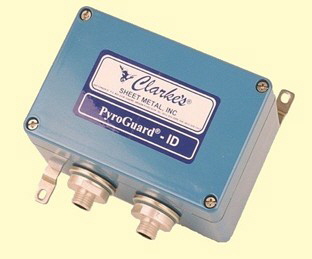

ID Sensor w/Mtg. Bracket

Specifications:

  • Unlimited amount of devices can be connected to one Zone.
  • Functionality testing from the PyroGuard console.
  • External brackets for easy mounting.
  • Durable Cast Aluminum Enclosure.
  • Size: L 7-5/8" x W 3-1/8" x H 2-7/8"
  • Voltage:  20VDC
  • Current:  9.85ma
  • Operating Temp: -40°F to 140°F
  • Enclosure Type: NEMA 4X
  • Two Year Warranty
  • Made in USA

The PyroGuard Interface Device allows for external devices such as smoke detectors, thermal couples and plug detectors to interface with all PyroGuard Control Consoles.

Any device with a normally closed or normally open contact can be connected to the PyroGuard System with the PyroGuard - ID. A switch of states on the contact causes an alarm condition at the Control console allowing for event logging and control of other types of equipment through alarm relay outputs.

The PyroGuard ID has line monitoring from the PyroGuard console of the external devices connected. This allows for full wire monitoring (shorts/opens) from the external device to the control console.

Interface Device Brochure

Click on Icon to download Interface Device Brochure
